HV-1400W

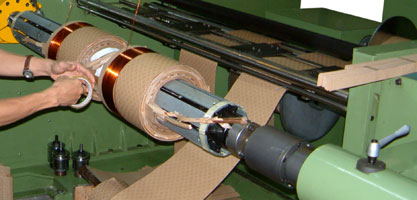

This machine is applicable for small and medium type (Mould) 161KV of transformer Copper wire winding, tidy of wire widning, one personnel can manipulate machine.

Special Instruction:

• Human Machine Interface, Multifunctional memory function.
• Servo motor and drive
• One or three conductings winding at the same time
• Isolation paper tension control stable to increased efficiency and waste time.

Specification

• Flat (round) type conducting 3-6 rolls
• Flat type conducting specification 0.5tⅩ5㎜~3.2tⅩ12㎜
• Round type conducting specification O0.5㎜~O3.2㎜
• Flat wire uncoiler O40X∮610 X225㎜
• Wire wire uncoiler O100X∮315 X505㎜
• Flat wire carrying weight 200kgs
• Round wire carrying weight 200kgs
• Transformer coil width 400mm
• Transformer coil radius 400mm
• Insulation paper 3 rolls
• Insulation paper thickness 0.38t~1.4t㎜
• Insulation paper width 260㎜~650㎜
• Insulation paper I.D.O75㎜±5㎜
• Insulation paper O.D.MAX O600㎜
• Insulation paper weight MAX60㎏
• Main shaft coiling speed 0~200rpm
• Transmission House Power 15Hpx6
