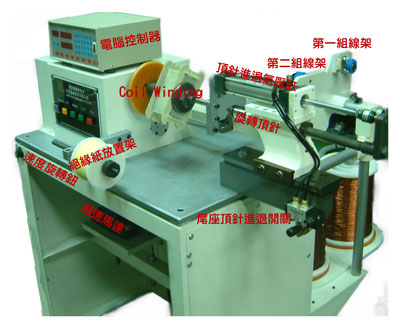

NC-300B-2B

This machine is designed for under 5KVA small transformer.
When it coil round and flat copper wire, it must be able to be neat in a row of line. It’s operated by single person as well.

Special Note:

• It uses NC system interface with multi-memory function.
• It uses step motor and servo program.
• Single coil or Double coils

Specification:

Round conductor

• Flat (Round) copper wire 2 rolls
• Flat copper wire sizeφ0.50㎜x5mm~φ3.2㎜x12mm
• Round copper wire sizeφ0.50㎜~φ3.2㎜
• Flat copper wire decoiler ψ40xψ610x225mm
• Round copper wire decoiler ψ28xψ315x505mm
• Flat copper wire carrying weight 200kgs
• Round copper wire carrying weight 60kgs
• Main shaft speed 0~45rpm
• HousePower 5Hp×6
• Machine Weight 365kgs
• Machine Size 90×100×110 cm
