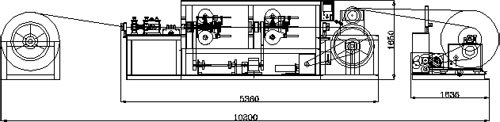

Fly-Fork Wrapping Paper Machine

CNC-12P

This machine is makes bare flat line or single conductor of copper strand wire.

Specification:

Wrapping paper layer: Max. 12 layer(6Px6P) Can winding the same way and different way.
Conductor Size: Thicknee 1.0~4.5mm(Not wrapping yet)

  1. Paper Tape Size :　
    Material 65°paper Material578 creased paper
    Thickness0.05mm~0.08mm Thickness 0.25mm
    Width9~28mm Width 25~50mm
    O.D.MAX300mm O.D.MAX 300mm
    I.D.60 mm I.D.60mm
  1. Overlap way:Gap(the same paper)1.0~1.5mm(overlap) Between layer 1/2~1/3 overlap
  2. Rotation rate: 50~500rpm Adjustment
  3. Line Speed: MIN 10 M min ( 14mm W )。
  4. Feeding: Weight Max. 500 kgs /pc
