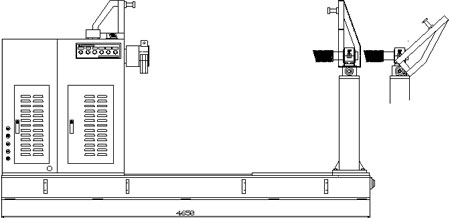

This machine is designed for the large-scale transformer. When it coils multi- strip conductor at the same time, must have a greater torque and high frequent start. And the weight and O.D. of product have inertia strength to must overcome.
Speicification:
Power: 3Phase 220V 60Hz
HousePower: 15HPx6P 3phase Motor
Speed: 1~6 rpm Converter adjustable
Material Size:2.4’9.5
Coil Weight: 3000kgs
Coil O.D.: f1000mm
Coil Length: 2200mm
Coil Count: Mechanical Turn Counter (5 Digitals)
Tail Adjustable : Electric Moving
